2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm2000mm1900mm Car Size

Name: 22KW Motor Double Deck Scissor Car Parking Lift For 5000mm2000mm1900mm Car Size
Brand: wintai
Price: 2 USD

Buy cheap 2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size product

Certification : CE

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 15

Type : Parking Lift

Warranty : 12 Months

Loading Capacity : 2500kgs

Equipment size : L 4100mm*W 2650mm*H 350mm~2350mm

Car size : L 5000mm*W 2000mm*H 1900mm

Lifting capacity : 2500kgs

Number of parking : 2

Running speed : UP 60s/DOWN 50s

Motor : 2.2KW

Voltage : 220/380V

Operating pressure : 21Mpa~25Mpa

Port : Guangzhou/Shenzhen

Place of Origin : Guangdong, China

Brand Name : wintai

Model Number : 0N-7809

Packaging Details : standard export package

Supply Ability : 1000 Set/Sets per Month

MOQ : 5 sets

Price : $2,000.00/sets >=5 sets

Contact Now

2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm×2000mm×1900mm Car Size

Product Overview

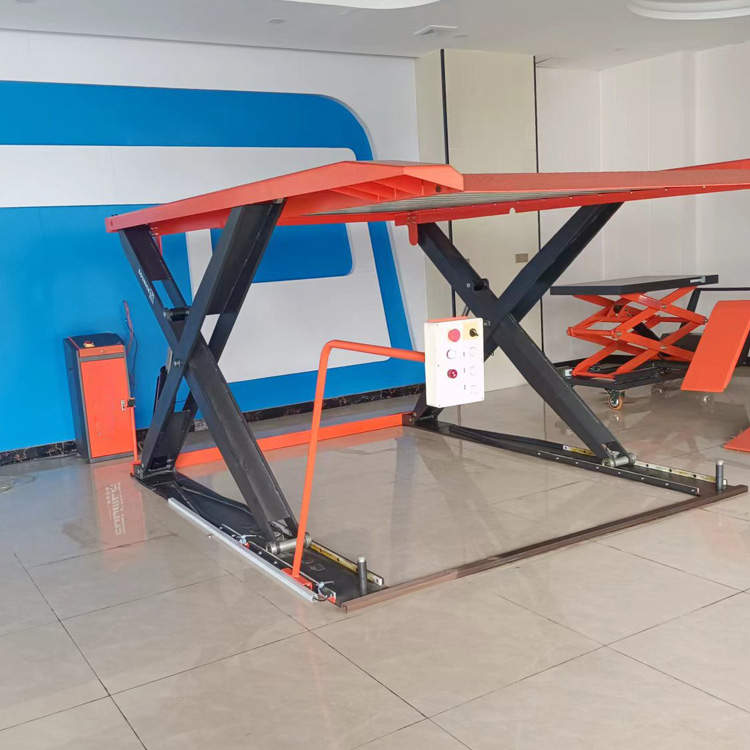

The scissor parking equipment features a scissor structure designed for 2 vehicles. Utilizing hydraulic transmission, the system employs a hydraulic pump that outputs high-pressure oil to drive hydraulic cylinders, enabling the loading plate to rise or descend for vehicle access. When the vehicle board is in the raised position, ground-level parking spaces become accessible for vehicle entry and exit.

Key Features

Compliance with European and American standards with CE certification for guaranteed quality
Compact footprint with flexible parking space configuration adaptable to parking lot requirements
Single-stage double cylinder lifting system with automatic balance adjustment, ensuring quiet and stable operation
Vehicle platform constructed with hot-dip galvanized corrugated board technology for enhanced durability and aesthetic appeal
Side beams feature bending and spraying processes to increase strength and visual appeal
Easy installation suitable for residential, 4S shops, public, or underground parking lots (requires underground clearance exceeding 3.6 meters)

2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size

Right Elevation

Left Elevation

Front Elevation

Technical Specifications

Item	Specification
Model	ON-7809
Equipment Size	4100mm (L) × 2650mm (W) × 350mm–2350mm (H)
Car Size Capacity	5000mm (L) × 2000mm (W) × 1900mm (H)
Maximum Car Weight	2350 kg
Number of Parking Spaces	2
Operating Speed	UP: 60 seconds / DOWN: 50 seconds
Motor Power	2.2 KW
Voltage	220V / 380V
